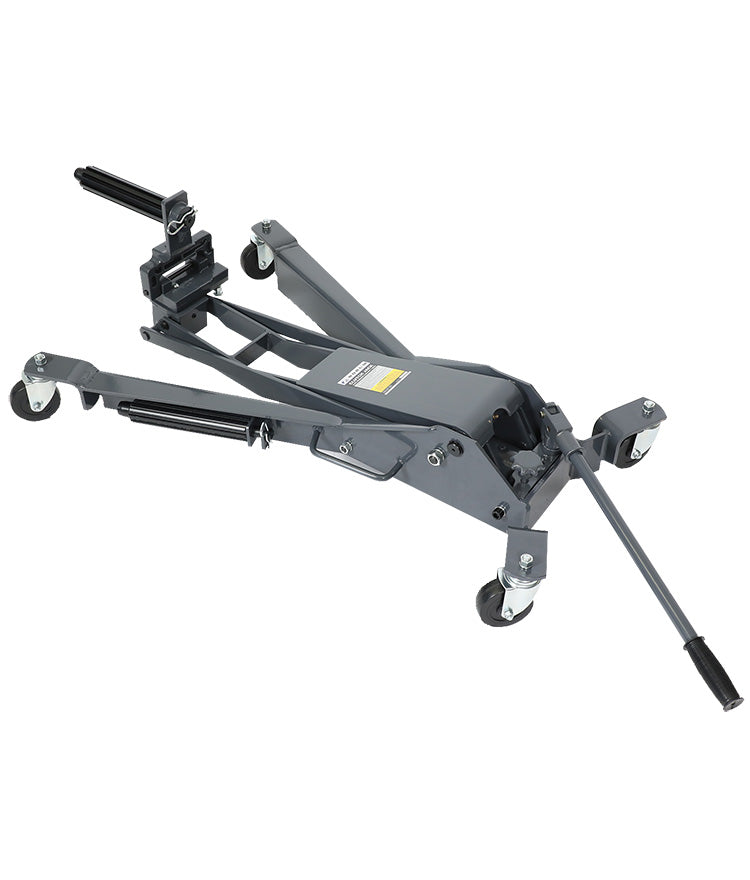

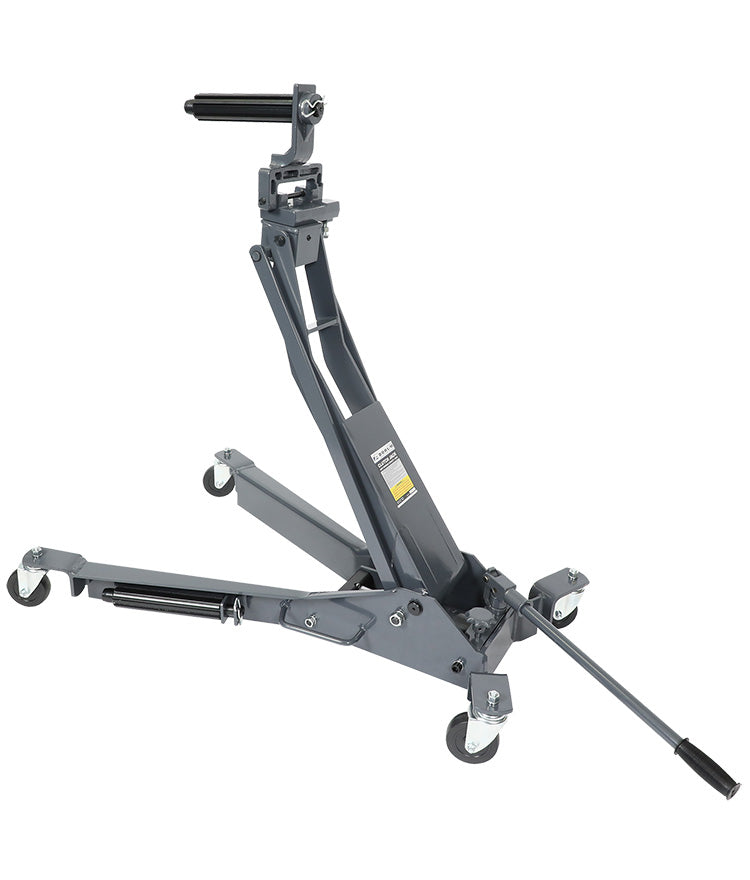

BORUM BCT130 Clutch Jack NEW PRODUCT

$1,865.00

The Borum Industrial 130kg Hydraulic Clutch Jack is perfect for earthmoving equipment and truck clutch and/or flywheel installation and removal. It features two fully adjustable splines, smooth, manually operated hydraulic lifting and lowering and four 360° swivel caster wheels for better load positioning. The ergonomic multi position rotating jacking handle makes overall maneuverability simple and efficient in a busy workshop.

Features

Designed for lifting, lowering & installing/removing heavy vehicle clutch/flywheel assembles
Frame is constructed of industrial-grade steel and built to exacting standards for quality and durability
High quality hydraulic steel jacking cylinder results in low physical effort oil needed to lift load
Industrial strength hydraulic system is protected from overload damage
Filled with industrial grade 32 hydraulic fluid
Rugged heavy industrial wheels and full swivel ball bearing castors

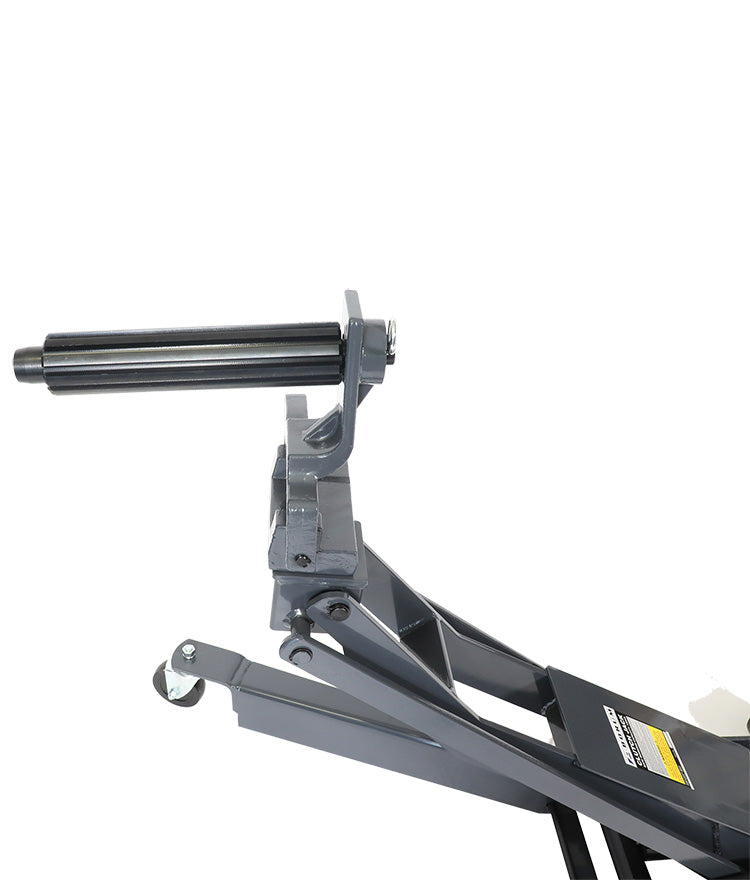

User-friendly rotating pumping handle for maximum multi-directional operation
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
Paint is oil, grease and dirt-resistant for easy cleanup

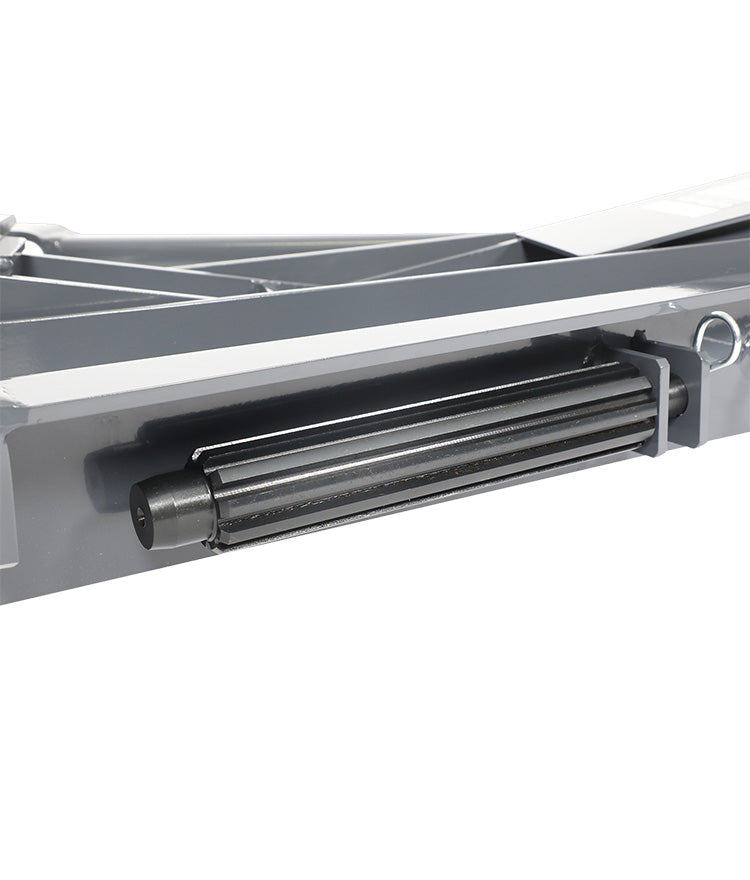

Two 10-tooth alignment splines included which conveniently stores on chassis

Specifications

Safe Working Capacity: 130kg
Minimum Height: 288mm
Maximum Height: 980mm
Chassis Dimensions: 1041 x 609mm
1 x 2" Alignment Spline Included (10 Tooth)
1 x 1-3/4" Alignment Spline Included (10 Tooth)
Carton: 1070 x 710 x 220mm
Gross Weight: 62kg

Intended Use

This clutch jack is designed to remove, install & transport (in the lowered position) 14" and 15-1/2" single and double disk clutches and/or flywheel assemblies on & off vehicles
