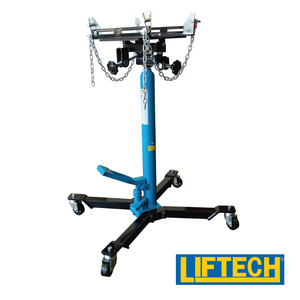

LIFTECH 755A heavy Duty Transmission Lifter 500KG 2 way Tilt
LIFTECH 755A heavy Duty Transmission Lifter 500KG 2 way Tilt
Part Number:
755A
Working Load Limit:
500kg
Features:
2 way tilt head, designed for light to moderate frequency of use. Convenient foot operated pump system for raising and foot release for lowering allows the operator to have both hands free for safe positioning of the transmission. Cradle has tilt adjustment front and back as well as left to right. Safety chain fitted to secure the transmission.
755A and LTJ1000 saddle size 275mm x 360mm.
| Part Number: |
755A |
|---|---|
| Models: |
Single Stage |
| Working Load Limit: |
500kg |
| Closed Height: |
1,075mm |
| Lift: |
705mm |
| Max. Height: |
1,780mm |
| Base Size: |
680 mm x 820 mm |
| Net Weight: |
54kg |
