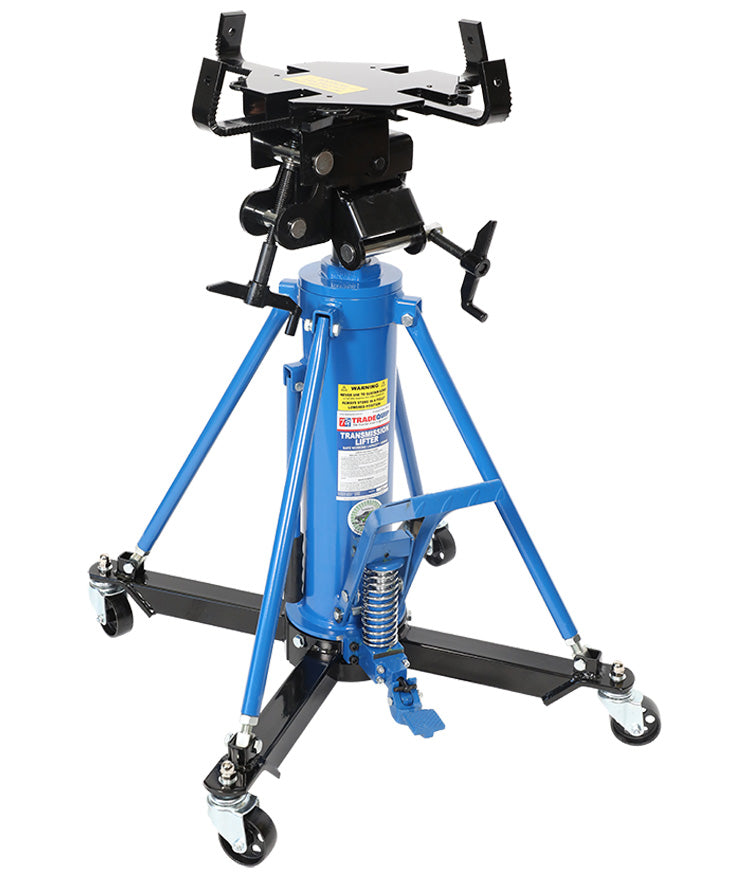

Tradequip 2063T Transmission Lifter (Jack) - 1,000kg SUV/4X4/LIGHT COMMERCIAL

Tradequip 2063T Transmission Lifter (Jack) - 1,000kg

This TradeQuip "Made for the Trade"  1,000kg Transmission Lifter is designed for passenger car, 4WD & Light commercial transmission installation and removal. It features a universal mounting cradle that provides a 4 way tilt range and a manually operated hydraulic system with smooth hydraulic lift and descent. The hydraulic system also includes a bypass system to prevent over extension and accidental overloading. The sturdy and stable design offers safety and security when removing and installing large and heavy transmissions.

Features:

• Designed for Passenger Car, 4WD & Light Commercial Transmissions
• Base frame constructed of high-grade steel
• 2-Stage hydraulic lift
• High quality large diameter hydraulic cylinder

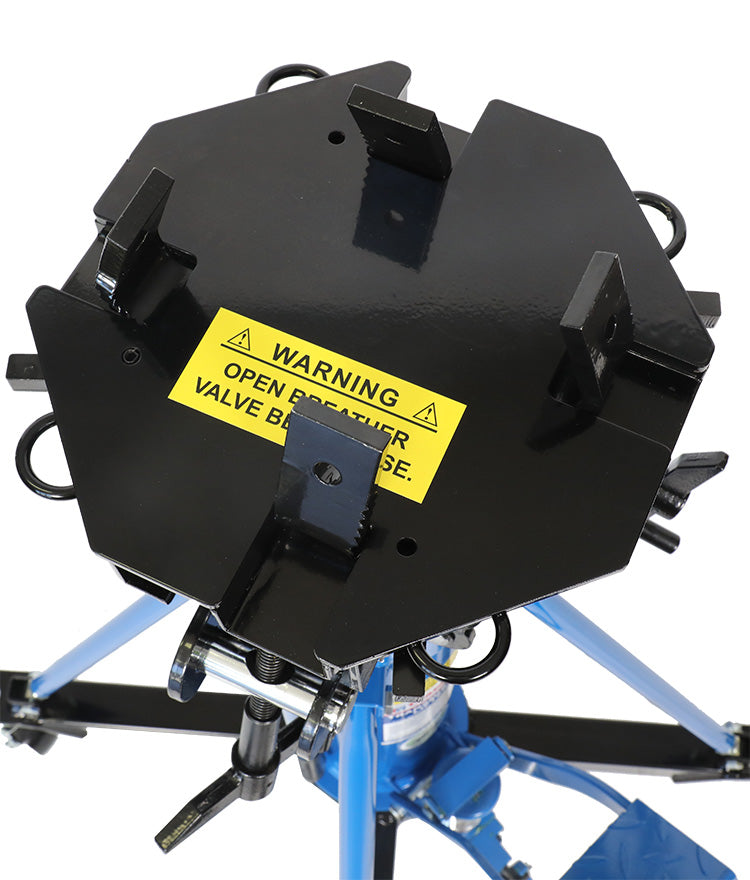

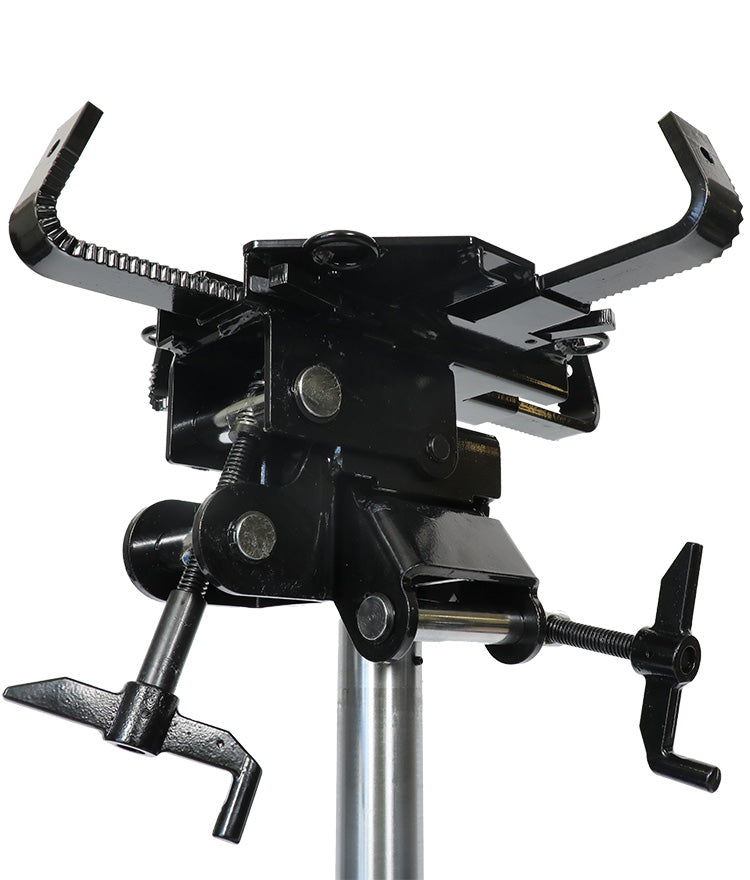

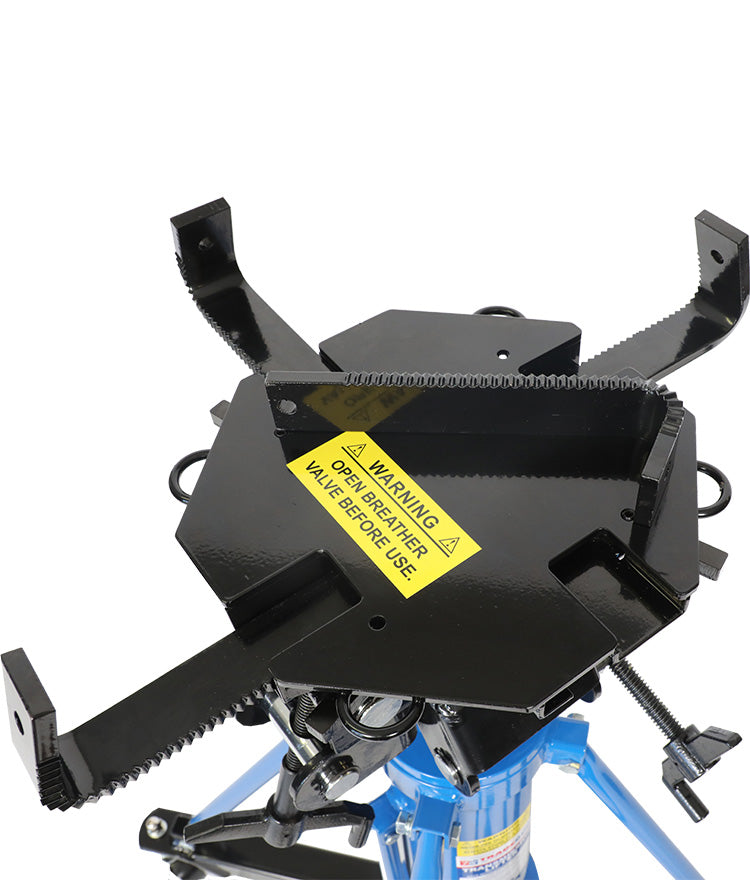

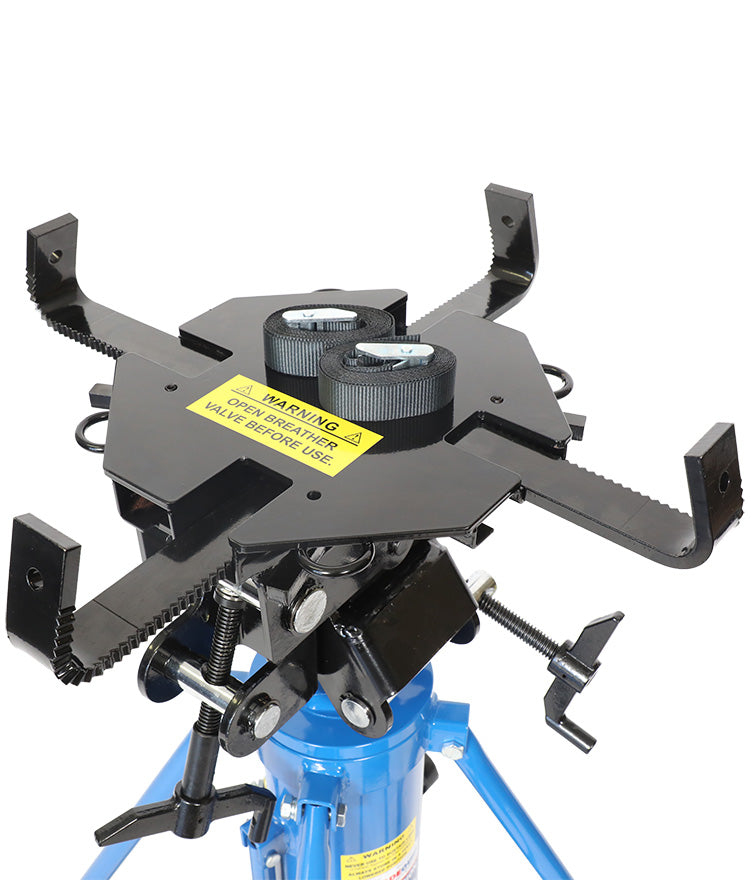

• Universal 4 way tilt cradle with safety chains
• Lead-free paint finish for a long-lasting finish
• Paint finish is oil, grease and dirt-resistant for easy cleanup
• Heavy-duty steel swivel castors

Specifications:

• Safe Working Capacity: RWD/FWD/AWD/4X4 GVM <3,200KG
• Rated Capacity: 1000kg
• Platform Lift Range: 950-1930mm (Excludes 60mm upright support brackets)
• Lifting Platform Size: 160x145mm (475x465mm Max.)
• Forward Tilt: 11°
• Rearward Tilt: 11°
• Left Tilt: 9°
• Right Tilt: 11°
• Crate: 840 x 570 x 400mm
• Nett Weight: 73.7kg
• Gross Weight: 82.3kg

Intended Use

Designed for the removal, installation and transportation (in the lowered position) of passenger vehicle transmissions that are raised by an in-ground or above-ground lift
