Tradequip 2068T Auxiliary Lifter Kit 500KG
Tradequip 2068T Auxiliary Lifter Kit 500KG
- Product Code: 2068T
- Brand: TradeQuip Professional

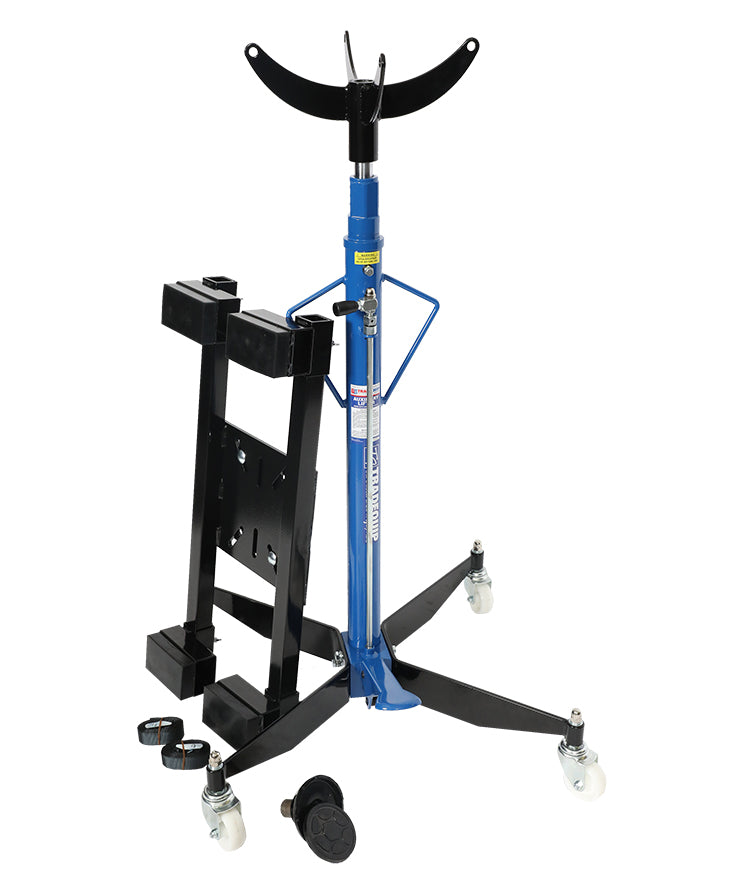

This 500kg capacity TradeQuip "Made for the Trade" Hydraulic Telescopic Auxiliary Lifter kit is ideal for partial temporary support of vehicle components in a busy workshop. The foot-operated quick lift pump frees up operator's hands when positioning for lift and the hand operated lowering mechanism provides safety with its extra slow lower control.
Not intended for supporting loads and not intended as a stand alone transmission lifter
Features
- Designed for partial temporary support of vehicle components during removal and installation of components
- Nylon wheels and full swivel ball bearing castors for easy movement
- High polished chrome-plated rams provides smooth operation to maximise its high reach that is lifted by the user-friendly hand release pedal

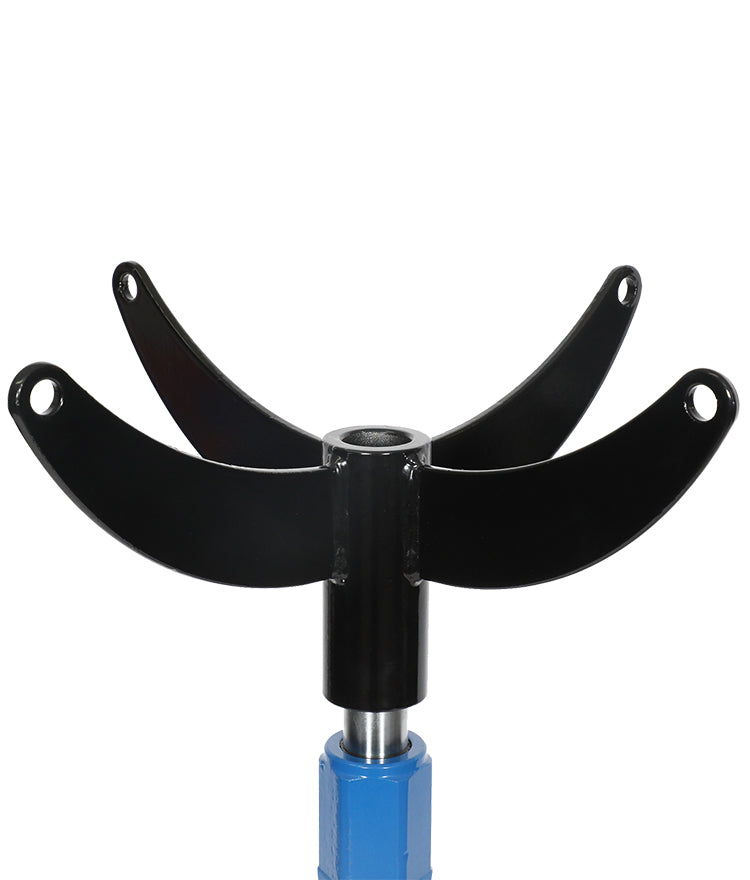

- 4 prong mounting cradle

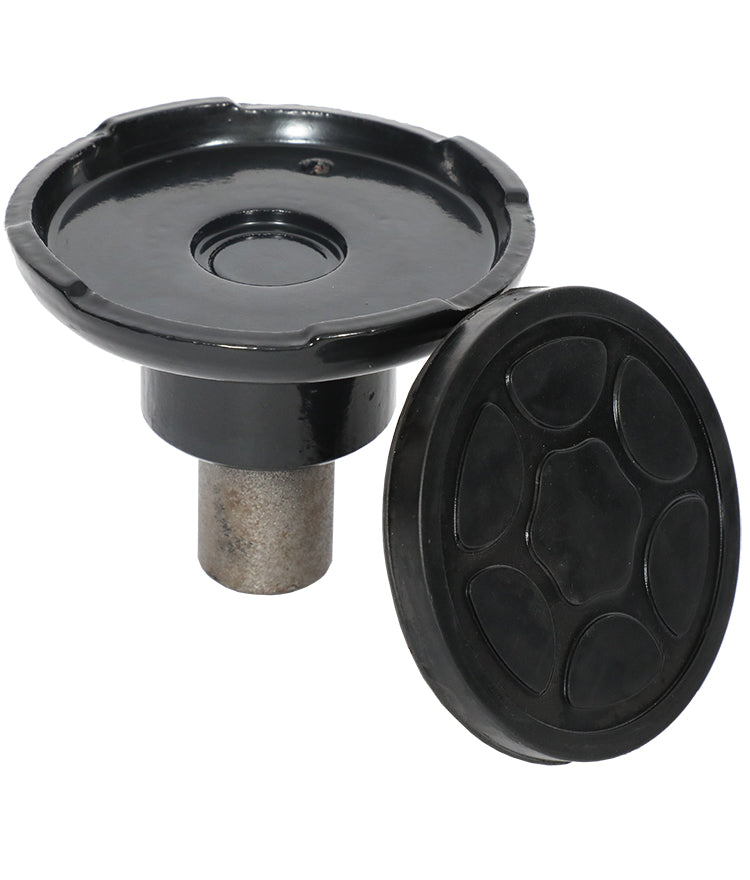

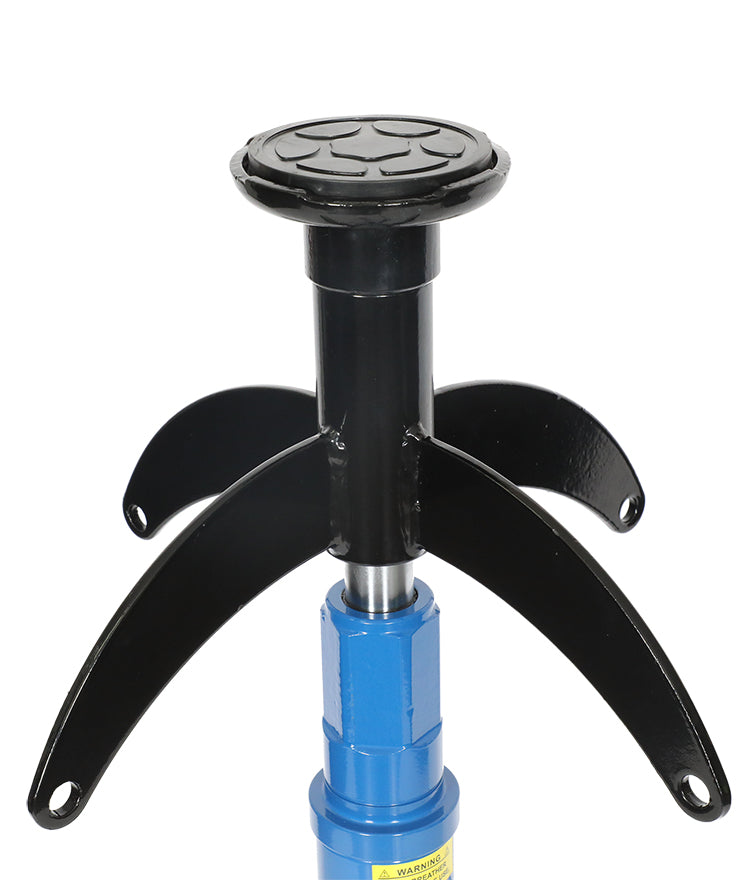

- Included "cup" style lift pad for smaller areas of work

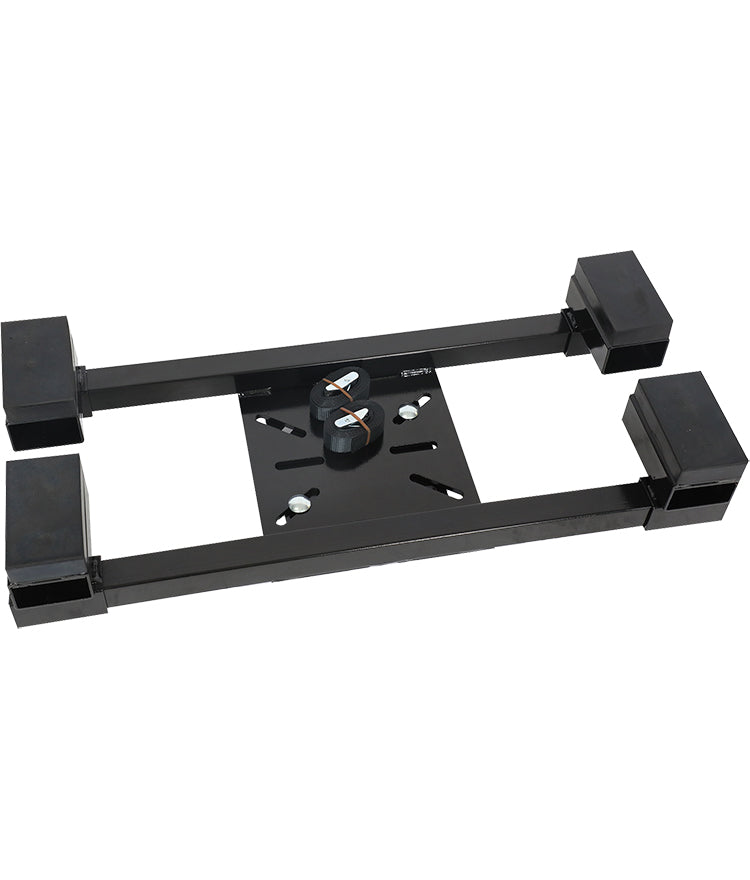

- Adjustable fuel tank adaptor to provide extra stability
- Unique hand release knob provides extra slow control safety when lowering
Specifications
- Safe Working Capacity: 500kg
- Minimum Height: 1175mm
- Maximum Height: 1985mm
- Cradle Size: 362 x 362mm
- Lift Pad Accessory: 107.5mm Dia
- Fuel Tank Holder: 812 x 352mm
- Base Dimensions: 540 x 570mm
- Nett Weight: 35.3kg
- Crate: 1110 x 315 x 275mm
- Gross Weight: 52kg
Intended Use
Designed for partial temporary support of vehicle components during removal and installation of components. Not intended for supporting loads and not intended as a stand alone transmission lifter.
Print version
Owners Manual Product Guide Bleed Instructions
